The breathable protective suit developed by MHG using spherical activated carbon is a skin protection equipment used in nuclear, biological, and chemical threat environments. It has excellent protective, physiological comfort, sports comfort, and durability characteristics,
Designed ergonomically. -Especially all known CBRN toxic substances (vapors, gases, aerosols, pollution dust)
All components have obtained China GJB certification
This set is very suitable for CBRN defense, combat, and rescue operations-
The set is within the indicated range. It can be stored, cleaned, decontaminated, and worn for a long time without affecting the level of protection. form:

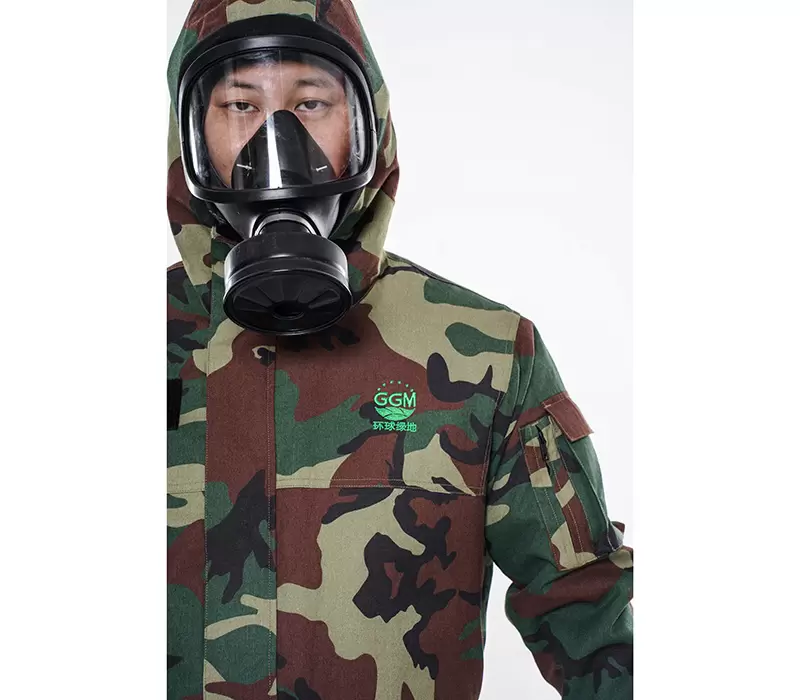

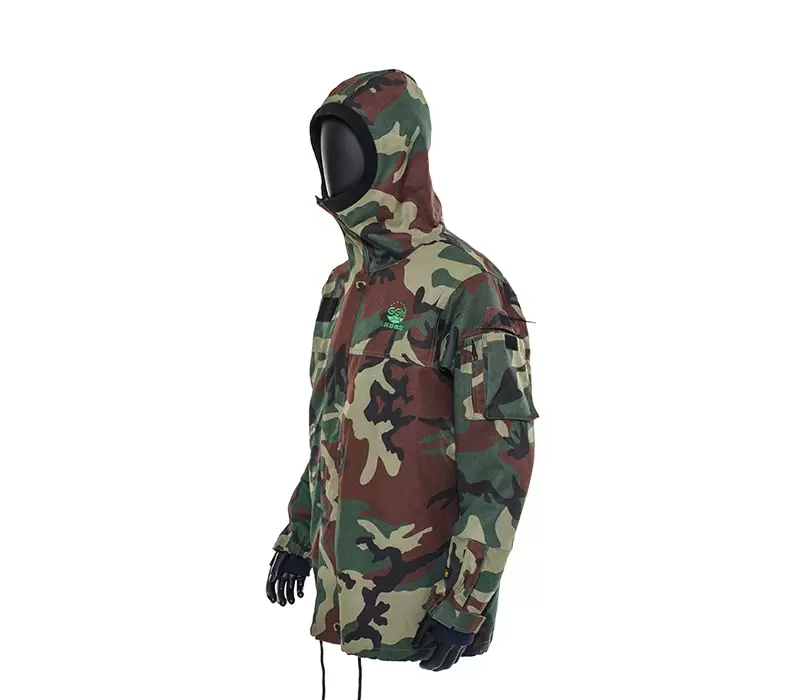

Jacket – front zipper, waist lock, adjustable size cuff, and front pocket with hood pocket

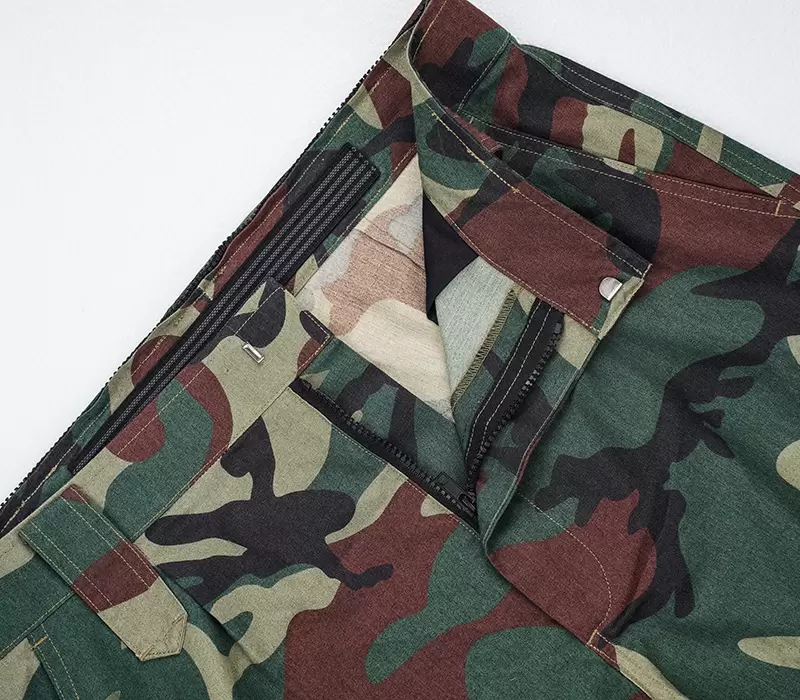

Pants – waist lock and shoe cover lock
Technical data:
Activated carbon filtration – spherical activated carbon
Compliant with NATO CBRN and GJB standards
Wear continuously for at least 30 days
Wash at least 10 times at 40 ° C without compromising protective performance
If the suit is stored in its original packaging under appropriate storage conditions, the minimum shelf life is 10 years
O Flame retardancy in accordance with ISO 6940:2004 standard – maintains its flame retardancy even after 5 washes
External covering:
Material composition: 80% cotton+20% polyester
Weight 180 ± 15g/m2
Mechanical properties: Fracture resistance warp yarn (ISO 13934-1): Minimum 850 N (ISO 13934-1) weft yarn: Minimum 700 N
O Mechanical properties Tear resistance Meridian (ISO 13937-1): Minimum 30 N Latitude: Minimum 35 N
O Water resistance (spray test) (EN 244920): Grade 5
Oil resistance (GB/T 19977-2014) – Grade 6
O Breathability (ISO 9237) minimum 250 mm/s (air flow rate at 100Pa)
O Fire resistance ISO 6940:2004: Verification
O Available colors: any type of camouflage, olive green, sand, black, navy blue, white
Internal coating:
Material: Spherical activated carbon particles with strong adsorption properties in the inner layer: quantity of 200 ± 20 g/m2
Spherical diameter: 0.4 mm
Uniform distribution of carbon spheres: Uniform distribution – the maximum distance between two spheres is no more than 1 mm
O-layer adhesive skin: black knitted
O-layer adhesive shell: PA/PES
Total weight of filter protective layer: 390 ± 30g/m2 gsm
Mechanical properties (ISO 13934-1) – Fracture resistance:>350 ± 50 N
Thermal stress (ISO 11092) -0.0117m ² · k/W
O Water vapor resistance (ISO 11092) – less than 7 ㎡ · Pa/W
Gas testing, HD， Target concentration of 25 mg/m3 (50% RH, 20 ° C, 24 hours) – Effective maximum penetration dose less than 0.1mm · min/L
Steam test, HD diffusion flow, 2.5 g/m2 (80% RH, 20 ° C, 24 hours, 0.1mg droplet) – no penetration
effective
Droplet pressure resistance, HD extrusion, 1.47×10 ^ 5 Pa. (20 ℃, 5mg for 24 hours) – no penetration
effective
General absorption capacity of carbon spheres: minimum 1100 g/m2
Washing: Reusable after 10 minutes of washing at low temperature, with all protective properties (ISO 6330-2012 4N)
Shrinkage rate after 1 wash: not exceeding 3%
Breathability (ISO 9237): minimum 300 mm/s (air flow rate at 100Pa)
